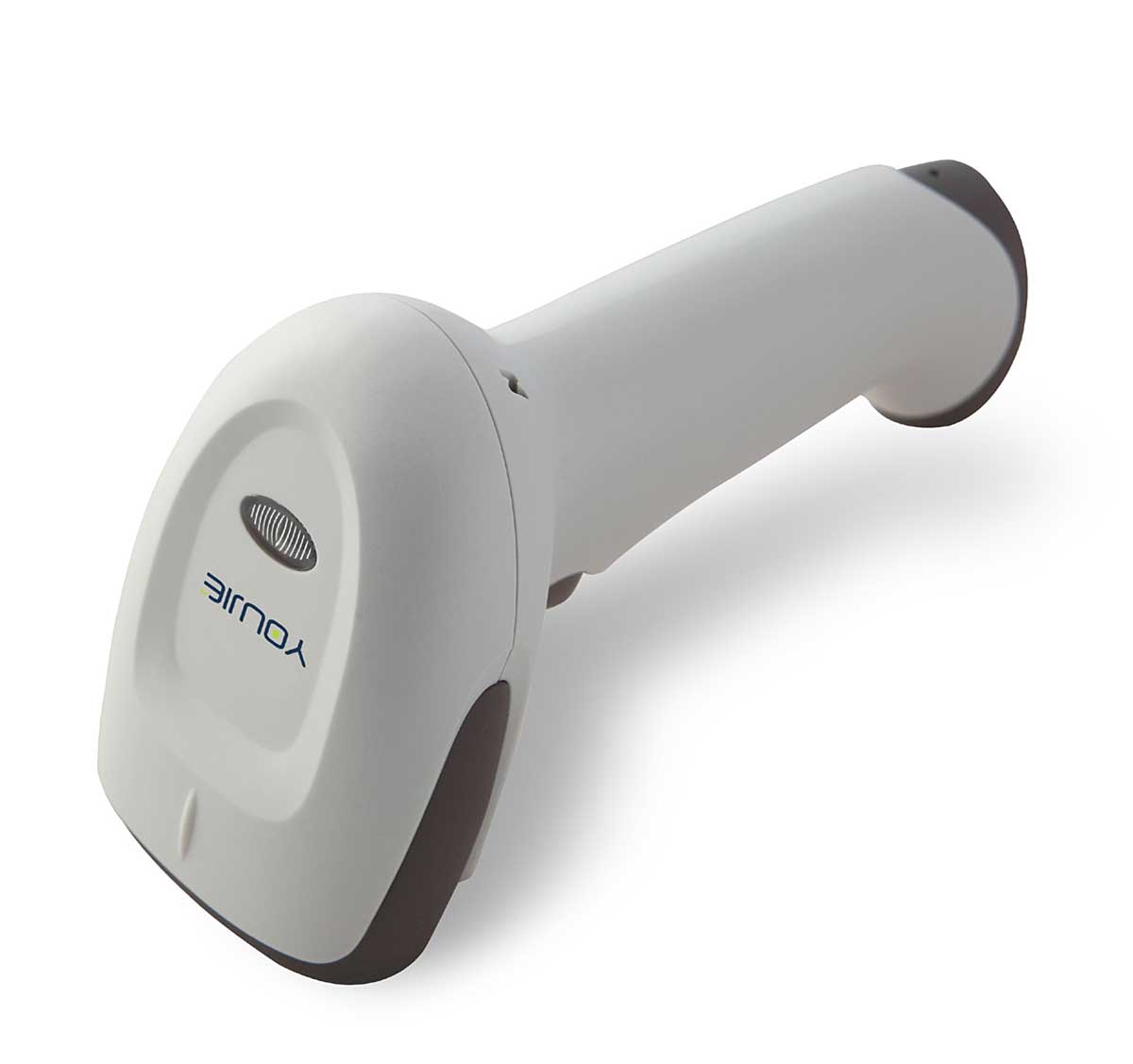

YJ3300 is an affordable hand-held laser barcode scanner that offers an alternative to CCD scanners. Its functional ergonomic design enables itself to fit in a wide variety of applications.
Mechanical
Dimensions (LxWxH): 110mm x70 mm x 153mm
Weight: 120g
Electrical
Input Voltage: 5VDC ±0.25V
Power-typical: 675mW (125mA@5V-standby)
700mW (140mA@5V-decoding)
Laser Level: Class 1; IEC60825-1
Electromagnetic Compatibility:EN55022 Class B
Environmental
Operating Temperature: 0°C - 40°C
Storage Temperature: -40°C - 60°C
Humidity: 5% to 95% relative humidity, non-condensing
Light Levels: 4842 LUX (150m candlelight)
Drop: Designed to withstand 1m drops
Environmental Sealing: Sealed to resist airborne particulate contaminants
Scan Performance
Light Source: Visible Laser Diode 650 nm ± 10 nm
Visual Indicators: Green=laser shines, ready to scan; red= successfully decoding
System Interface: Keyboard Wedge, Independent Keyboard Wedge, USB
Scan Pattern: Single line
Scan Speed: 72 scan lines/second
Scan Angle: Horizontal: 46°
Print Contrast: 35% minimum reflectance difference
Pitch, Skew: 68°, 52°
Decode Capabilities: All standard 1D
Typical Performance*
|
Narrow Width
|
Depth of Field
|
UPC-A 13mil
|
0.5” - 10”
|
10.4mil
|
1” -9”
|
7.5mil
|
2” - 8”
|
5mil
|
3” - 5”
|
Resolution
|
4mil
|
*Performance may be impacted by bar code quality and environmental conditions
|
